Corometrics 250 Keypad and Volume Pad with Elastomer - RoHS
2025177-073 | |
2025177-023 | |
Cuidado Materno Infantil | |
GE HealthCare | |
GE HealthCare | |
Insira o seu número de aprovação e submeta para adicionar item (s) no carrinho.
Please enter approval number
OR
Não sabe o seu número de aprovação? Ligue para 800-437-1171
Enter opt 1 para os primeiros três avisos, e tenha o seu ID do Sistema disponível.
Se você adicionar item (s) no carrinho e enviar seu pedido sem o número de aprovação
, a GE irá contactá-lo antes que o seu pedido
seja confirmado para entrega.
Select your approver's name and submit to add item(s) to your cart
Please Select Approver Name
OR
Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.
If you add item(s) to cart and submit your order without
selecting an approver, GE will contact you before your order
can be confirmed for shipment.
Visão geral do produto

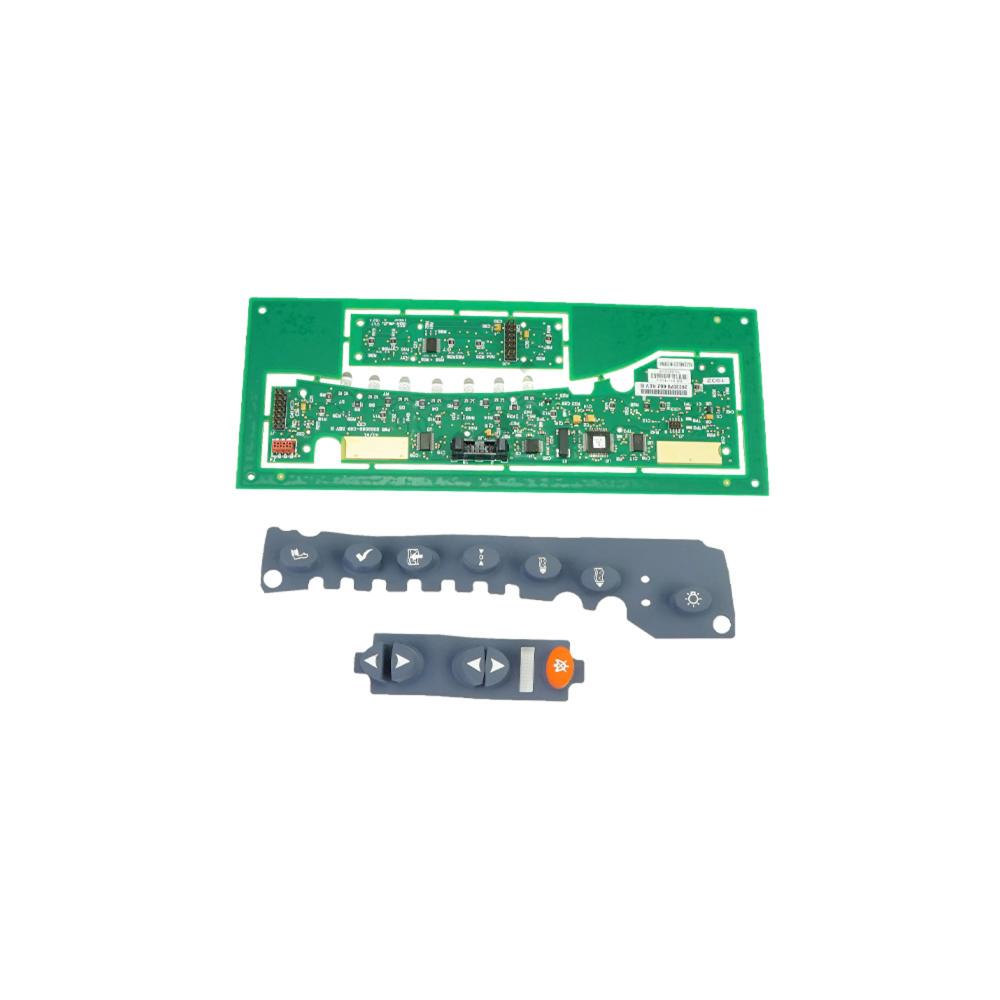

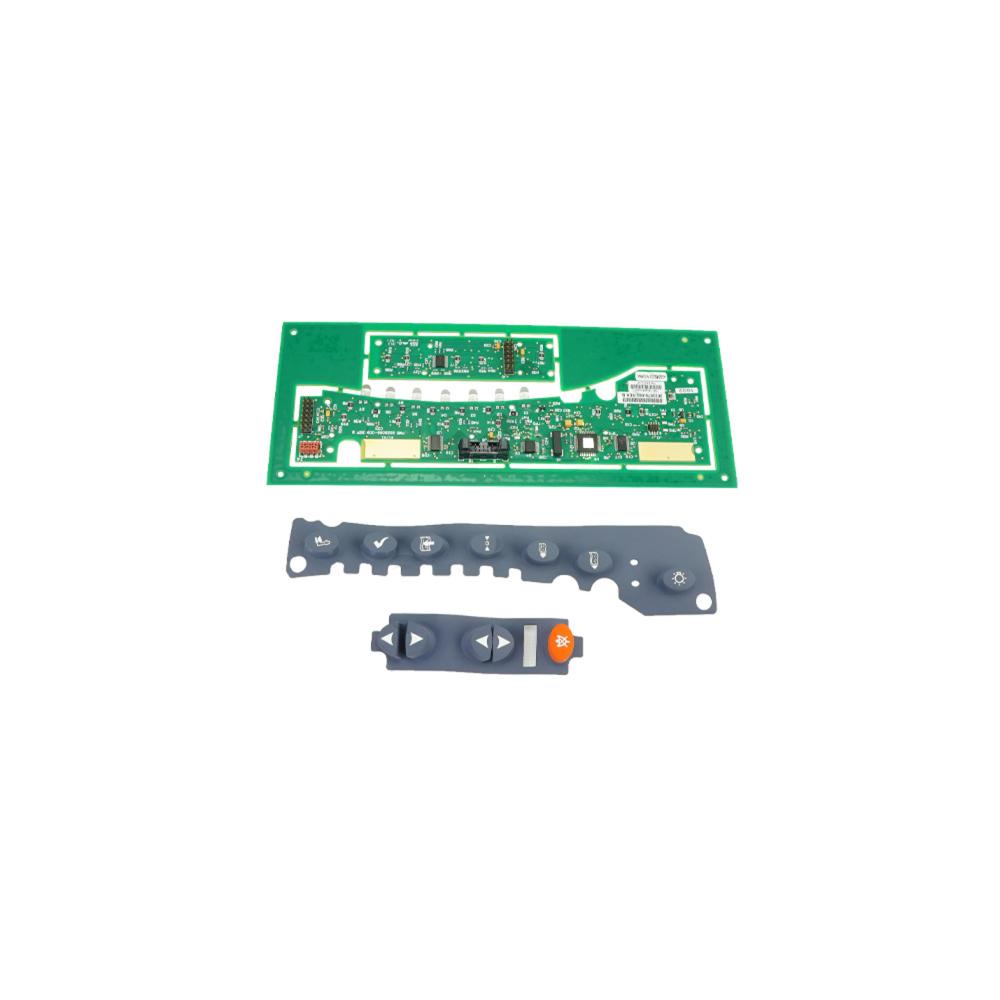

The Corometrics 250 Keypad and Volume Pad with Elastomer is a field service kit that is a specially designed and intended for use in Corometrics™ 250 series monitor and other medical equipment as applicable. The service kit is comprised of a main user interface Printed Wiring Assembly (PWA), user interface main keypad, side keypad, product identification label and packing label. The part can be used as a Field Replaceable Unit (FRU) during servicing and maintenance. The main keypad is engraved with names NIBP start/stop button, test button, mark (offset), Uterine Activity (UA) reference button, paper advance button, record button, power indicator, record indicator and light button. The volume/alarm keypad is engraved with names FHR2 volume decrease button, FHR2 volume increase button, FHR1 volume decrease button, Fetal Heart Rate (FHR1) volume increase button and alarm silence button. The main user interface board is the central processing unit for the monitor unit. The volume/alarm keypad board has an elastomeric property and has backlight LEDs for each keypad of the front panel. The user-interface keypad board interface with the main board is through an RS-232 interface. The keypad is made of high quality clear silicone rubber material that has high tensile strength, good tear resistance and excellent chemical resistant properties, which makes it well suited for modern medical applications and demanding applications. The service parts are securely packed inside a high quality corrugated box and are supported by bubble wrap and antistatic bags to avoid physical damage during transit. The part is RoHS compliant and is approved for today’s safety standards.
Peças equivalentes:
Abaixo há mais informações sobre as peças equivalentes. As peças sem um hiperlink são listadas apenas para referência e não estão disponíveis para compra online.
Peça equivalente | Detalhes parte |
---|---|
2025177-023 | FRU,CORO 250,KEYPAD&VOL PAD W/ELASTOMER |
