Gantry and Table Installation Leveling Screw
5405131 | |
2105871 | |
Computed Tomography (CT) | |
GE HealthCare | |
GE HealthCare | |
Insira o seu número de aprovação e submeta para adicionar item (s) no carrinho.
Please enter approval number
OR
Não sabe o seu número de aprovação? Ligue para 800-437-1171
Enter opt 1 para os primeiros três avisos, e tenha o seu ID do Sistema disponível.
Se você adicionar item (s) no carrinho e enviar seu pedido sem o número de aprovação
, a GE irá contactá-lo antes que o seu pedido
seja confirmado para entrega.
Select your approver's name and submit to add item(s) to your cart
Please Select Approver Name
OR
Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.
If you add item(s) to cart and submit your order without
selecting an approver, GE will contact you before your order
can be confirmed for shipment.
Visão geral do produto

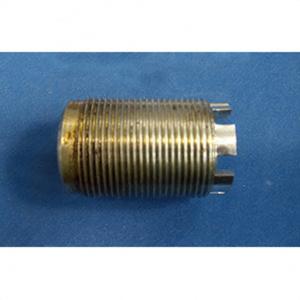

This screw is used to adjust the up and down level of the Gantry and Table assemblies of GE's Computed Tomography systems. For proper functioning and load distribution of an equipment, accurate level needs to be maintained as per the recommeded specifications which can be performed easily using the levelling screws. This 2.415 inch long leveling screw comes with 1-1/2-12 UNF-2A threaded section over 2.120 inch of its length, these threads can be torqued into the tapped section using the slotted drive. The fastening and loosening of the thread affects the level and can be used to ify the floor inconsistencies. This 1.380 inch diameter leveling screw comes with six slots drive and is made up of strong, rigid and durable leaded carbon steel material. The zinc plating over this screw gives it good corrosion resistance and assures a longer service life. These levelling screws are usually used with Baseplate-Less High Speed Advantage (HSA) systems and is also compatible with GE's Optima 660, Optima 540, Revolution CT, Discovery 750 HD, Discovery ST etc. Computed Tomography systems. This item will be shipped in suitable packaging to give adequate protection during transit. 5405131
Peças equivalentes:
Abaixo há mais informações sobre as peças equivalentes. As peças sem um hiperlink são listadas apenas para referência e não estão disponíveis para compra online.
Peça equivalente | Detalhes parte |
---|---|
2105871 | This screw is used to adjust the up and down level of the Ga |
