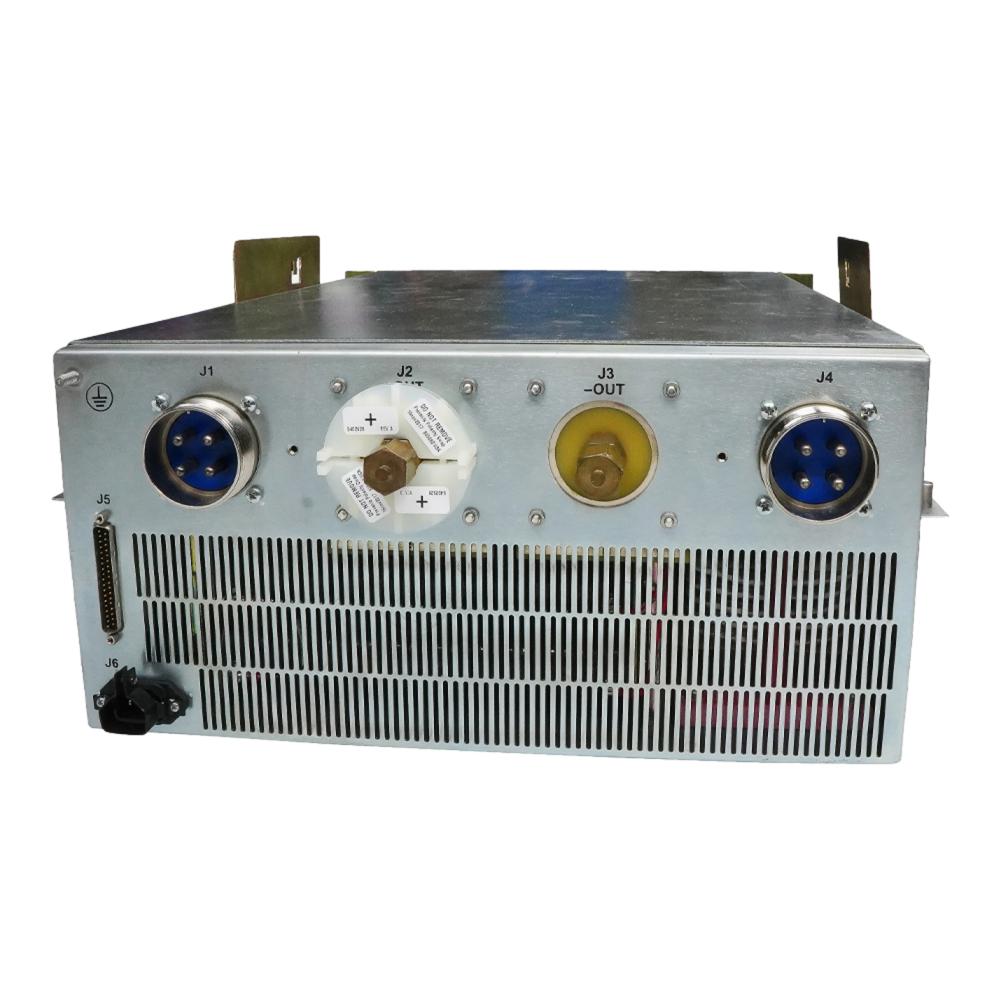

HFA-S Assembly with Spacer to Prevent Cable SWAP 5189221-3-R
| 5189221-3-R | |
| Imagem por Ressonância Magnética (MRI) | |
| Peças GE HealthCare | |
| GE HealthCare | |
Adicionar à lista de desejos
Entrar e Comprar
Por favor selecionar a data
Second Opinion Aprovação Necessária
Insira o seu número de aprovação e submeta para adicionar item (s) no carrinho.
Número de Aprovação
Please enter approval number
OR
Não sabe o seu número de aprovação? Ligue para 800-437-1171
Enter opt 1 para os primeiros três avisos, e tenha o seu ID do Sistema disponível.
Se você adicionar item (s) no carrinho e enviar seu pedido sem o número de aprovação
, a GE irá contactá-lo antes que o seu pedido
seja confirmado para entrega.
Second Opinion Aprovação Necessária
Select your approver's name and submit to add item(s) to your cart
Approver Name
Please Select Approver Name
OR
Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.
If you add item(s) to cart and submit your order without
selecting an approver, GE will contact you before your order
can be confirmed for shipment.
O item não está disponível en inventário com a quantidade selecionada. Por favor atualize a quantidade.
Visão geral do produto
The HFA-S Assembly with Spacer to Prevent Cable SWAP is used in G3 GEMSPRO ACGD CAB ASM, ACGD CABINET ASSEMBLY W/SGA/SGAPS/GP which comes under the modality of MRI. The HFA-S (Switching Gradient Amplifier Hybrid) is an IGBT-based switching voltage amplifier that is utilized in the HFD-S subsystem, which has performance capabilities of 1400V and 320A. Three separate identical amplifiers (one for each axis) reside in an HFD-S subsystem and are powered by an ACGD-PS. The purpose of these amplifiers is to provide the voltage and current to the gradient coil during scanning. The inputs to the amplifier are voltage and current commands from the Gradient Processors (GP3) board. The amplifier has two floating outputs that are wired in series to provide the total gradient drive voltage. Also, internal to the amplifier is the current sensor, which provides a current feedback Signal to the GP3. The HFA-S is composed of: 2-IGBT Inverters and Choppers (Bus Bar boards), Output Filters, HFA Control board, Gate Driver board, Voltage Sense board, Back-Plane board, Current Sensor and Associated Cabling/Packaging. The GE product is an innovation and fit well into versatile customer needs. The part is diligently designed for superior performance and reliability. It is securely packed inside a high quality packing box to avoid physical damage during transit and labeled with details about the product, Quality Assurance (QA) seal and shipment details.
