16 Slice GDAS Converter Card 2404393U
| 2404393U | |
| Computed Tomography (CT) | |
| GE HealthCare | |
| GE HealthCare | |
Adicionar à lista de desejos
Entrar e Comprar
Por favor selecionar a data
Second Opinion Aprovação Necessária
Insira o seu número de aprovação e submeta para adicionar item (s) no carrinho.
Número de Aprovação
Please enter approval number
OR
Não sabe o seu número de aprovação? Ligue para 800-437-1171
Enter opt 1 para os primeiros três avisos, e tenha o seu ID do Sistema disponível.
Se você adicionar item (s) no carrinho e enviar seu pedido sem o número de aprovação
, a GE irá contactá-lo antes que o seu pedido
seja confirmado para entrega.
Second Opinion Aprovação Necessária
Select your approver's name and submit to add item(s) to your cart
Approver Name
Please Select Approver Name
OR
Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.
If you add item(s) to cart and submit your order without
selecting an approver, GE will contact you before your order
can be confirmed for shipment.
O item não está disponível en inventário com a quantidade selecionada. Por favor atualize a quantidade.
Visão geral do produto

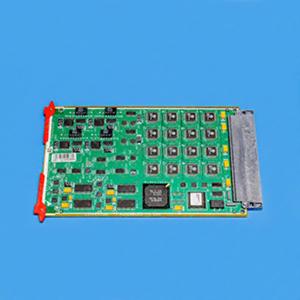

The 16 Slice Global Data Acquisition System (GDAS) Converter Card is used in CT scanners and other medical systems. It is a printed circuit board which processes low level current signals from 128 channels of CT X-ray detector photodiode and convert them into 128 voltage/charge signals. This circuit board is comprised of a 2 GDAS ASICs, 32-bit floating point DSP, 100uA bias current circuit for the GDAS ASICs, GDAS ASIC Bridge (GAB) FPGA, CAN Transceiver, I2C serial digital output temperature sensor, bootable 16 Mbit flash memory, 128 Mbit SDRAM ICs, regulators, local ferrite beads, and digital I/O circuitry. The signal from detector output is amplified by the GDAS ASIC. The flash memory holds the necessary ASICs input offset voltage trim values, firmware version, date, time, vector table, checksum, FPGA configuration file and the converter board serial number. The on board temperature sensor (U5) monitors the board ambient temperature to ensure that the board is operating in its proper temperature range. The converter board shall not constitute a safety hazard to personnel using or maintaining the CT equipment. The product is securely packaged inside a high quality packing box to avoid physical damage during transit.
