Visão geral do produto

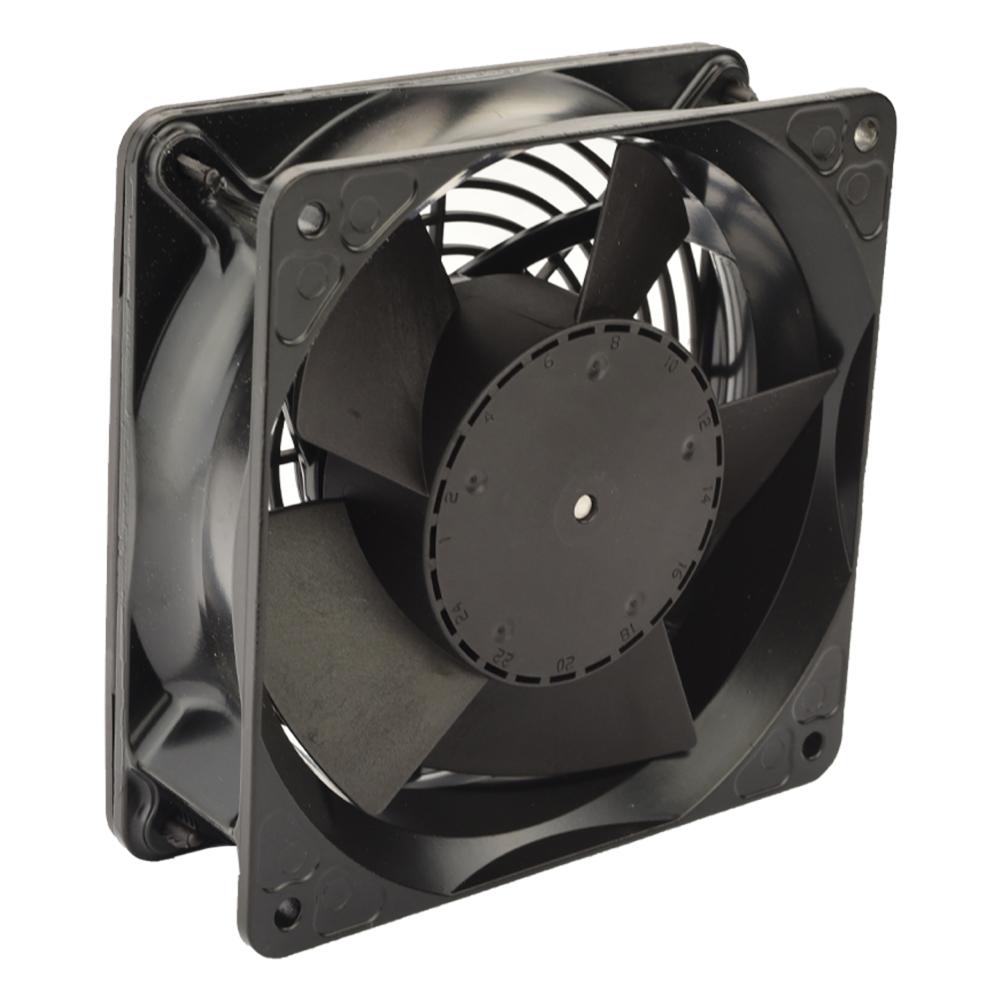

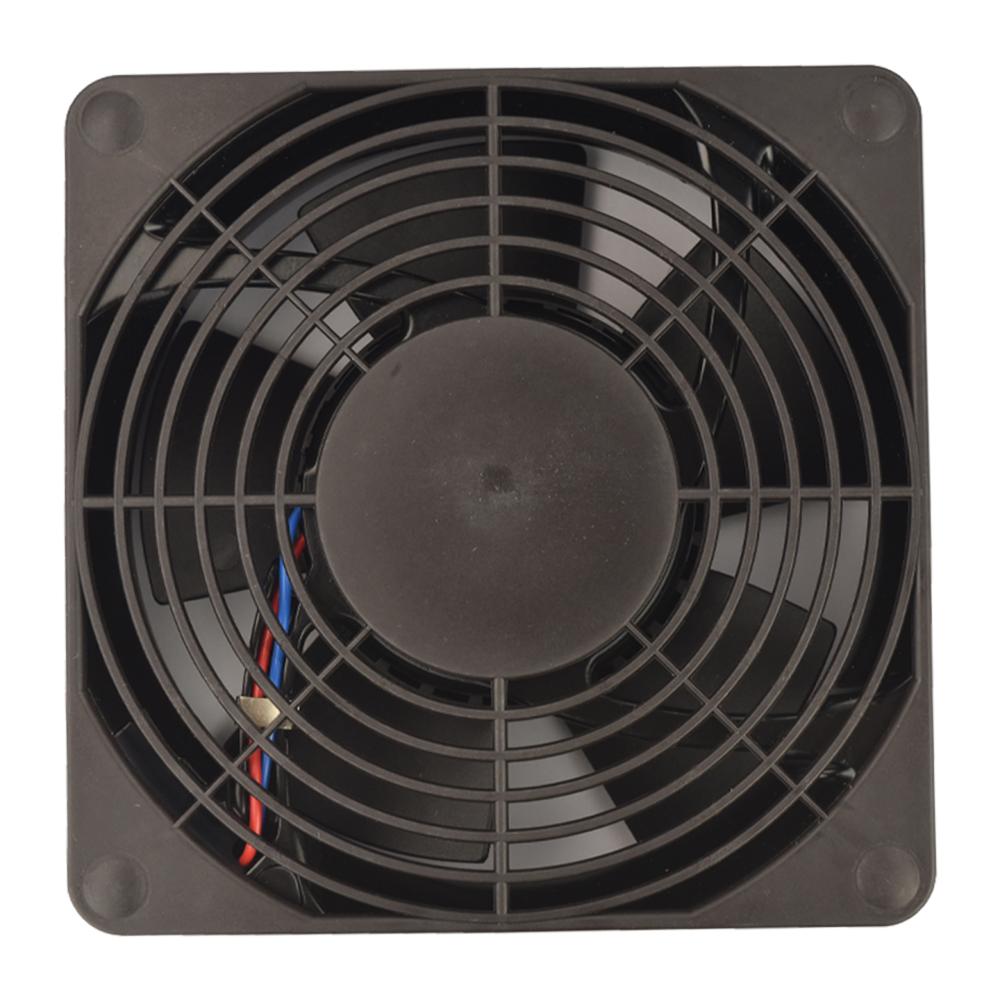

This fan assembly comprises of an axial DC Fan and a Fan Guard. The use of high quality Polyamide (PA) Plastic material for making the Impeller offers very good impact resistance, toughness and lightweight. The impeller is protected using a plastic fan guards which is highly effective at preventing damage to cabinet cooling systems from household dust, debris or prodding fingers. The Aluminum Dia Cast fan housing provides excellent EMI and RFI shielding properties, very good strength, hardness, good stiffness and strength-to-weight ratio. This fan requires 24 Volts DC power supply to provides good airflow rate up to 231 m³/h for faster air circulation and produces low noise even at 4400 RPMs. This Fan assembly is used as thermal management device in the JEDI Inverter for providing efficicient cooling and prevent premature failures. This fan assembly is compatible for use in the GE's Discovery IGS 520, Discovery IGS 540, Discovery IGS 620, Discovery IGS 530, Discovery IGS 730, Innova Biplane, Precision 500D Interventional Image Guided Systems. 2336213-H
Produtos Compatíveis
Discovery IGS 540
Discovery IGS 520
Discovery IGS 620
Discovery IGS 730 WU_0900
Discovery IGS 530
Precision 500D
Robust, digital performance at an efficient dose
It starts with the imaging chain, which features a 12-bit CCD-based camera.Then there’s AutoEx, which automatically adjusts key image-acquisition parameters in real time for optimum quality. Meanwhile, closed-loop Automatic Brightness Control and patented extended Dynamic Range circuitry maintain contrast and minimize blooming.
