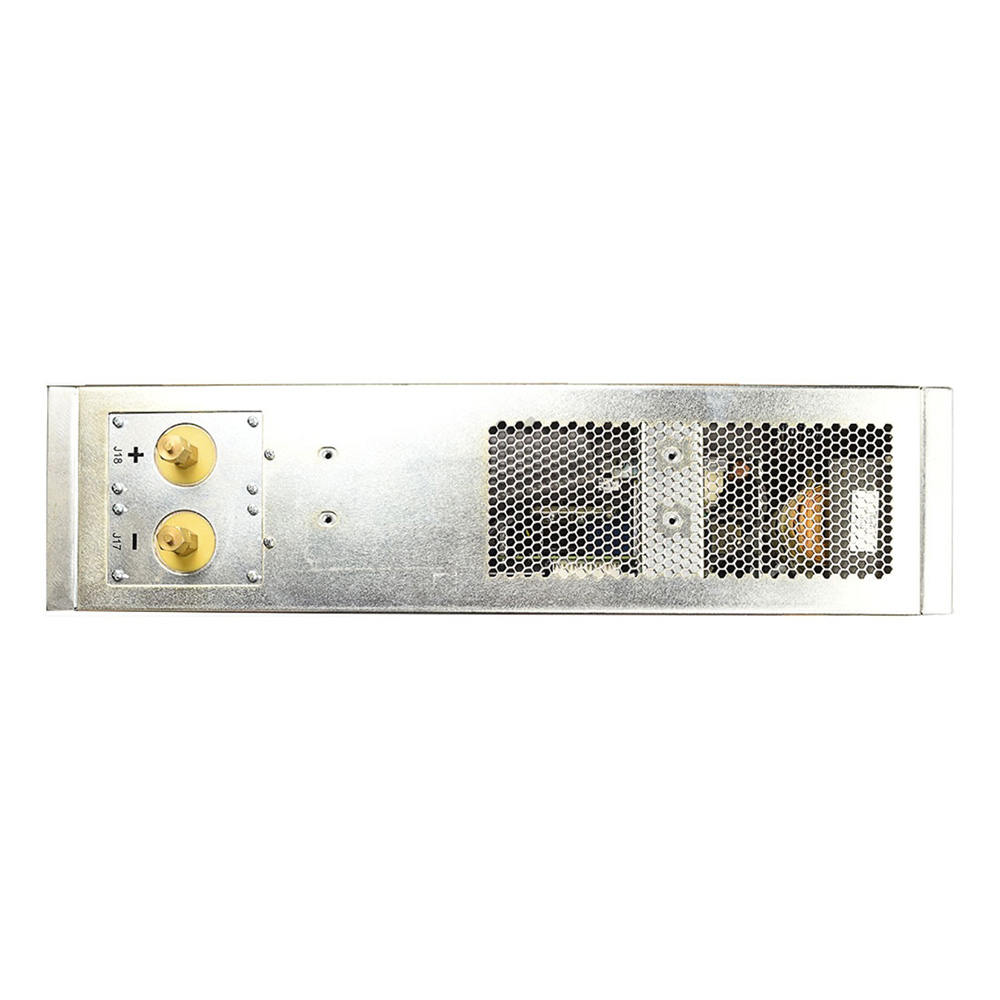

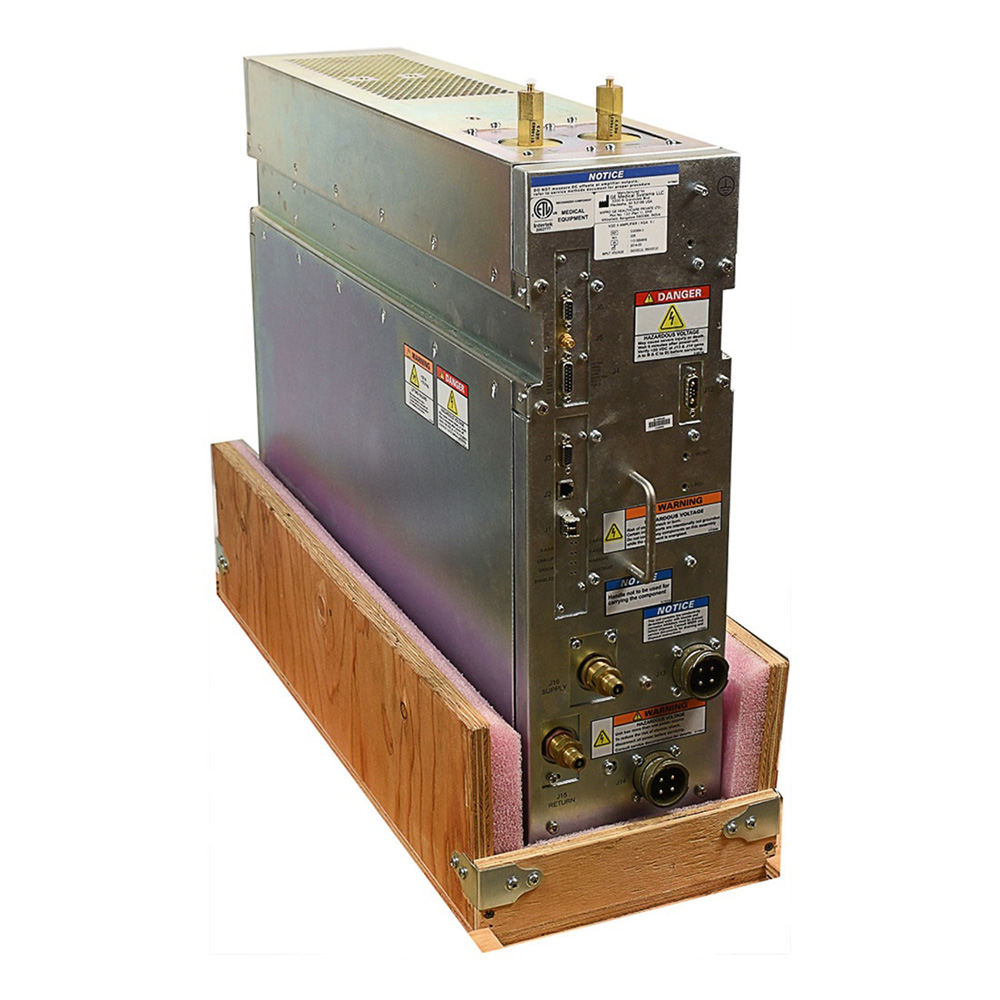

Twin Gradient Switch Box 2253466-R
| 2253466-R | |
| Imagem por Ressonância Magnética (MRI) | |
| Peças GE HealthCare | |
| GE HealthCare | |
Adicionar à lista de desejos
Entrar e Comprar
Por favor selecionar a data
Second Opinion Aprovação Necessária
Insira o seu número de aprovação e submeta para adicionar item (s) no carrinho.
Número de Aprovação
Please enter approval number
OR
Não sabe o seu número de aprovação? Ligue para 800-437-1171
Enter opt 1 para os primeiros três avisos, e tenha o seu ID do Sistema disponível.
Se você adicionar item (s) no carrinho e enviar seu pedido sem o número de aprovação
, a GE irá contactá-lo antes que o seu pedido
seja confirmado para entrega.
Second Opinion Aprovação Necessária
Select your approver's name and submit to add item(s) to your cart
Approver Name
Please Select Approver Name
OR
Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.
If you add item(s) to cart and submit your order without
selecting an approver, GE will contact you before your order
can be confirmed for shipment.
O item não está disponível en inventário com a quantidade selecionada. Por favor atualize a quantidade.
Visão geral do produto
The Gradient Switch is part of the Twin-Gradient GEMINI project. Its function is to switch between the twin Coils (WB= Whole Body and ZM= ZooM gradient) under the command of the Operator or the Host Computer. The switching is done mechanically by Contactors. These contactors can carry currents up to 400A and have insulation of 1500V. There are 6 contractors: 3 for WB and 3 for ZM. The Commands are sent through Opto-Couplers and SSR (Solid State Relays) to keep good isolation between Commands and the Gradient currents. The assembly is installed in a special cabinet, on the way from the Gradient Amplifier to the Gradient Filter (on the Penetration Panel). The Unit in its communication to the GP (Gradient Processor) also send the Contactors Status and Diagnostic information for Faults. The whole Unit is designed to be mounted in a Rack 19 inches Standard : 6U Height, 36 inches depth. This Twin Gradient Switch is compatible for use with GE's Signa 3.0T HDxt and Signa 1.5T HDxT Magnetic Resonance Imaging (MRI) Systems. 2253466-R
