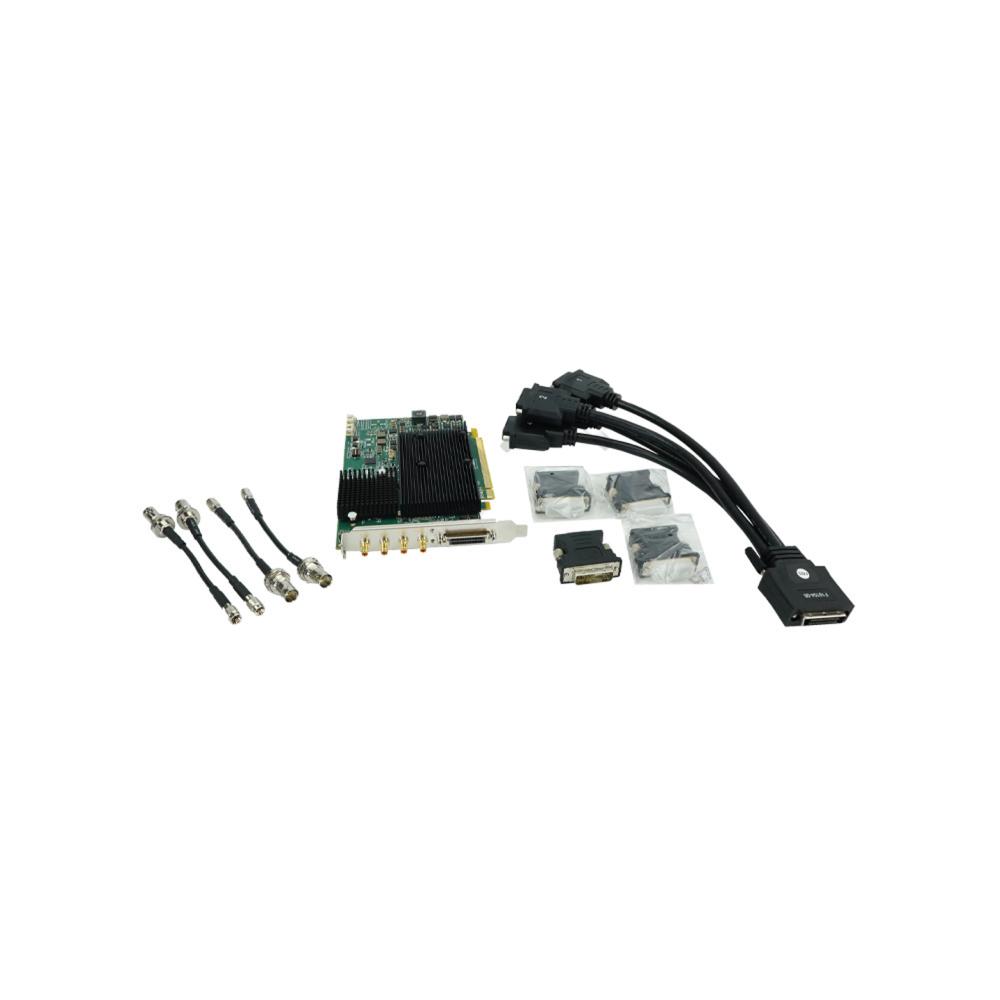

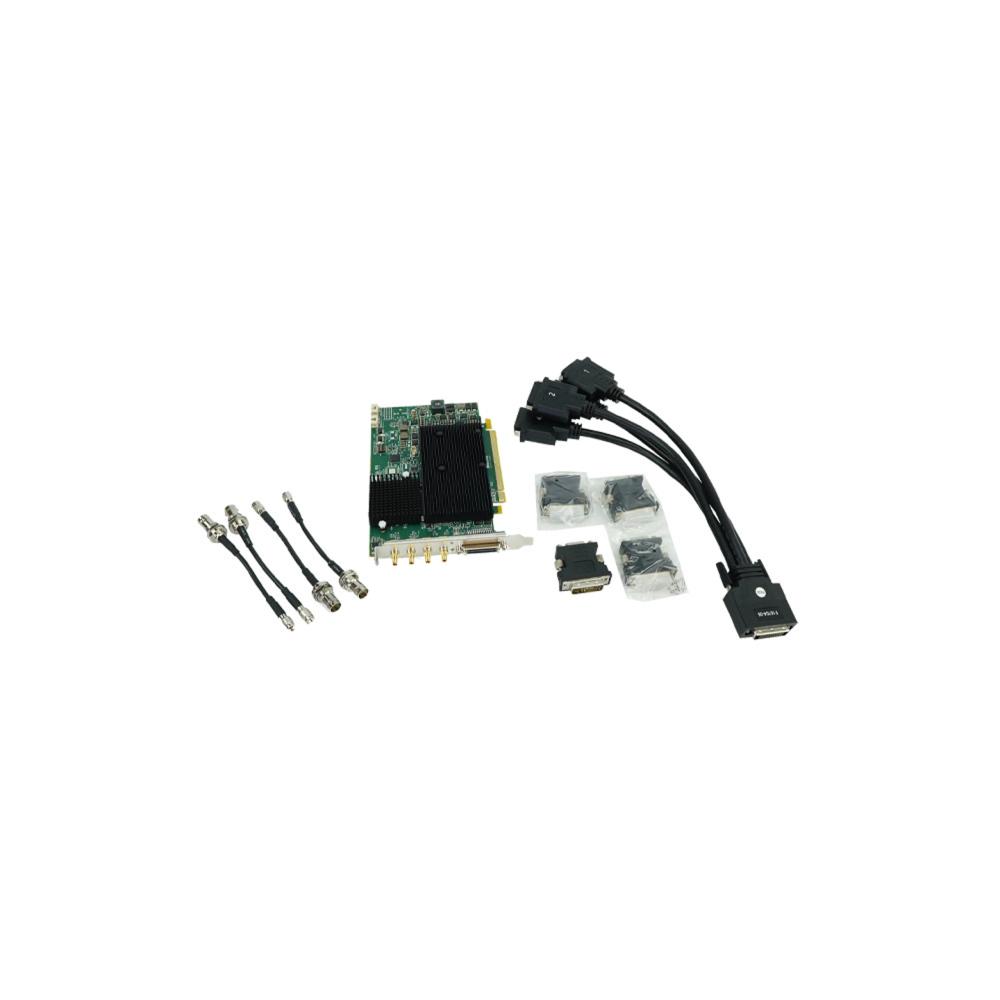

Graphics and video capture card
| 2088825-001 | |
| Diagnóstico Cardiológico | |
| Peças GE HealthCare | |
| GE HealthCare | |
Adicionar à lista de desejos
Entrar e Comprar
Por favor selecionar a data
Second Opinion Aprovação Necessária
Insira o seu número de aprovação e submeta para adicionar item (s) no carrinho.
Número de Aprovação
Please enter approval number
OR
Não sabe o seu número de aprovação? Ligue para 800-437-1171
Enter opt 1 para os primeiros três avisos, e tenha o seu ID do Sistema disponível.
Se você adicionar item (s) no carrinho e enviar seu pedido sem o número de aprovação
, a GE irá contactá-lo antes que o seu pedido
seja confirmado para entrega.
Second Opinion Aprovação Necessária
Select your approver's name and submit to add item(s) to your cart
Approver Name
Please Select Approver Name
OR
Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.
If you add item(s) to cart and submit your order without
selecting an approver, GE will contact you before your order
can be confirmed for shipment.
O item não está disponível en inventário com a quantidade selecionada. Por favor atualize a quantidade.
Visão geral do produto
This Graphics and Video capture card is part of computer assemblies of GE's Mac-Lab recording systems. It is a high-performance graphics adapter with video capture capabilities, that provides an ideal solution to the legacy standard definition (SD) and advanced high definition (HD) video needs of many medical imaging applications. It features two independent video input paths. Each video input path can connect and switch between RGB / CVBS / YPrPb, DVI-D / and SDI signal types through DVI-I and BNC connectivity respectively. In addition, the card features four independent video outputs, two DVI-I and two SDI. The video outputs are not only independent from each other but are also independent from the video inputs for maximum configuration flexibility. The video outputs support RGB / DVI-D / and SDI signal types through DVI-I and BNC connectivity. A PCIe® x16 host interface provides the card with the throughput necessary to handle the transfer of two HD video streams to host memory. This Graphics and Video capture card is used with computer assemblies of Mac-Lab, CardioLab and ComboLab recording Diagnostic ECG systems.
